Hypro 8-Roller SilverCast Pump
$1,010.11
Out of stock
SKU
7560XL
The Hypro 8-Roller Pump is available in cast iron, Ni-resist, and silvercast models. These pumps are designed to transfer liquids for a variety of spraying, agricultural, and industrial applications.
Hypro SilverCast 8-Roller Pump w/ Super Rollers

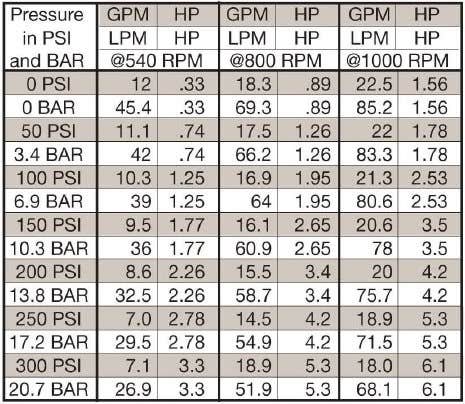

Performance Information:
- Super Rotor
- Viton Seals
- 20.1 GPM
- 300PSI
- 1000RPM
- ¾" NPT, 15/16" Shaft
- Max. flow: 12 gpm/45.4 lpm at 540 rpm
- Max. flow: 22.5 gpm/85.2 lpm at 1000 rpm
- Max. pressure: continuous 100 psi/6.9 bar
- Max. pressure: intermittent 300 psi/20.7 bar
- Max. rated speed: 1000 rpm
- Max. fluid temperature: 140°
Other Attributes:
- Rollers: Super Rollers standard (Poly, Teflon and Buna-N available)
- Housing: Silvercast
- Port sizes: ¾" NPT
- Shaft: 15/16" solid
- Shaft rotation: CCW
- 1" hose barb inlet fitting for 1000 rpm operation
- Shaft Seals: Viton standard (Buna-N available)
- Available PTO adapters
- Rotor: Silvercast
- Recommended PTO torque arm kit 3430-0540
Hypro Pumps Part #
7560XL = 8-Roller SilverCast Hypro Pump
| Fits Pumps w/ | 7, 8 Roller |
|---|---|
| Pump Material | SilverCast |
