Ace Pumps (FMC-150-HYD-206) Discharge Pump

3 In Stock!
This Ace 150 Series Discharge Pump is designed to perform with applications on large tanks and long spray booms with high pressure and volume. This “F” model includes both NPT ports and standard flanged connections.

Ace Pumps Discharge Pump

Ace Pumps 150 Series Logo

Ace Pumps began to develop hydraulic driven motor pumps in 1969 and hasn't looked back since. They are a industry leader for various pump application throughout the agriculture industry due to their mounting versatility, customized performance, and easy maintenance.

Here are the FMC-150-HYD-206(49920) main features:

  • For applications with large tanks and longer spray booms
    • Higher Pressure
    • Greater Volume
  • "F" model is equipped with both NPT Ports and Standard Flanged Connections
  • 1½" Suction x 1¼" Discharge
  • 120 PSI
  • 5100 RPM
  • 120 GPM
  • 7 GPM Hydraulic Motor

The 206 hydraulic motor fits almost any type of hydraulic system on your tractor or sprayer. It requires a 7 GPM maximum hydraulic fluid input. These pumps are recommended for the following applications:

  • Load Sense Closed Center
  • Open Center (up to 16 GPM w/internal bypass)
  • Pressure Comp Closed Center

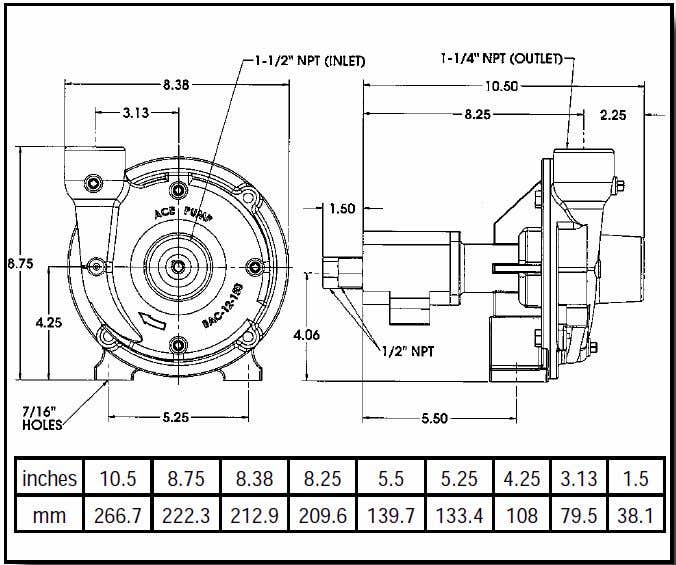

Ace Pumps Dimensions 150 Series

Ace Pump Part #:
49920 = Discharge Pump FMC-150-HYD-206

More Information
Price $1,426.29
Special Shipping Group SSR_DEFAULT
Apache Part 0
Manufacturer Ace Pumps
Inlet 1 1/2"
Outlet 1 1/4"
